The Gulf of Carpentaria, Queensland, Australia is home to one of the world's most extraordinary meteorological phenomenon, the Morning Glory Cloud. One kilometre high stretching from horizon to horizon the "Glory" is a shockwave in the atmosphere of immense proportions. You can access either a short video or a half hour documentary film on the Glory via the links above. The meteorology of the cloud that follows is the result of many years of chasing Glories since Russell White and I first soared the Glory in a two seat Grob motor glider in 1989. Particular thanks goes to Geoff Pratt for his contribution of ideas.
The video that you may see on this site is copyright to Aerial Video Australia

This diagram was produced by Dr. Doug Christie of the Australian National University and included in research papers he produced on the Morning Glory Clouds in the late Eighties and early Nineties. It identifies the origins of the 3 Morning Glory types.

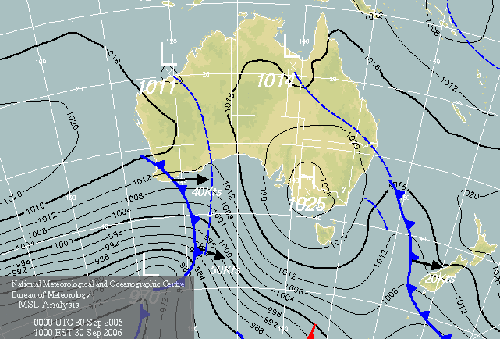

From April to September the Gulf of Carpentaria has typical tropical dry season weather patterns - fine days with light to moderate south-easterly trade winds. The MSL chart to your right is typical of these conditions..

In late September as the land mass heats up, a heat trough running southward through inland Queensland forms with an associated high pressure ridge along the Cape York Peninsula as shown on the MSL analysis chart to your right for the 30th September 2006. This trough encourages the formation of seabreezes around the Gulf.

Around October the weather starts to alternate back and forth between wet season and dry season patterns with cycles of three to four days of dry season SE trade winds followed by a few days of sea breezes associated with the heat trough. These patterns signal the onset of the brief Morning Glory season and there is always a seabreeze and high humidity the day before a Morning Glory. The penetration of the seabreeze fronts around the Gulf produce convergence lines as shown next.

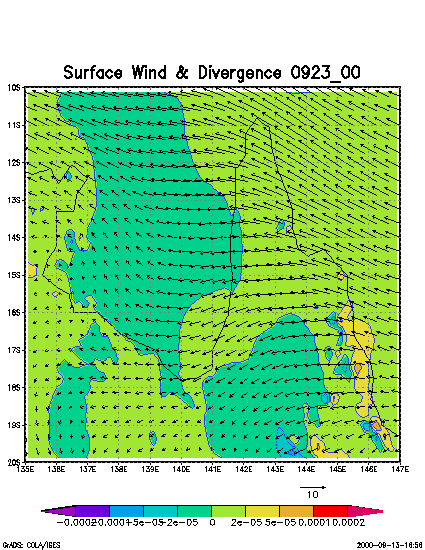

This computer modelling was produced by Professor Roger Smith of Monash University showing the convergence line of the Cape York east coast seabreeze and the prevailing SE trade winds up to approximately 10,000 feet. This line tends to move westward during the night-time in the form of the Northern Australian Cloud Line (NACL). The NACL propagates as a line of convection in which showers and thunderstorms can develop as the wet season approaches. If the animated modeling here has frozen you may need to reload the page to view it properly.

This photo was taken by Roger Smith of the Northern Australian Cloud Line as it propagates across the Gulf. The NACL propagates south westward and generally, whilst over water, it takes this ragged appearance. The southern end, if conditions are suitable can form into single or multiple Morning Glory Clouds.

This satellite image shows the NACL with the Morning Glory Clouds appearing as it's southern extension with a number of waves forming as it is squeezed under an inversion (around 5000 feet) left over from the previous day's seabreeze. It appears that a Morning Glory type disturbance is an atmospheric undular bore which have similarities to tidal bores which travel upstream in various rivers around the world. In the case of tidal bore the leading edge of a tidal surge penetrates into shallower water forming one or more waves against the direction of the current.

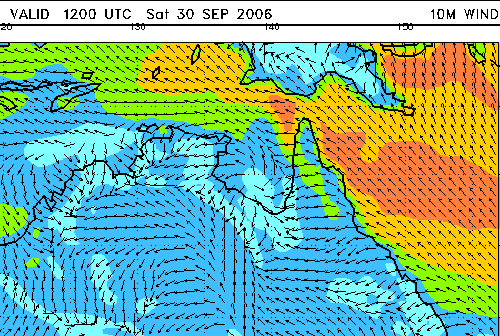

This 10m wind analysis chart also on the 30th September the late evening low level seabreeze patterns the day before before a glory. The seabreeze convergence areas to the south and south east of the Gulf are the origin of the rarer Southerly and South Easterly Glories.

This satellite photo is an example of the how the convergence lines shown in the above 10 metre wind analysis would propagate into and across the Gulf after about 8 hours (note - this is not the same day as previous charts... On that particular day only a NE Morning glory was observed).

The meteorology above describes what is happening in the atmosphere up to around 5 - 10,000 feet and these conditions in the lower atmosphere are reasonable indicators that a Glory is likely. Unless the upper air conditions are suitable however, it is probable that any potential Glory will be weak, short lived, unspectacular or even non existent. When a well formed Morning Glory develops the upper air synoptic charts, associated airflows and inversions are always similar.  If you would like to view charts (also from the 30th September 2006) and video of the upper air flows and systems above the Morning Glory click here

The Morning Glory is an atmospheric manifestation of a non linear solitary wave known as a soliton. A team of students from the Ecole Centrale de Lyon have done a recent research project on solitons and their web sites are: Soliton Research (French) or Soliton Research (English)

Click on the image to the right for another example of a Morning Glory type cloud formation seen in the Joseph Boneparte Gulf in the Kimberly region of Western Australia on the 23rd of October 2002.

To view a larger image of these intersecting undular bore systems in the Arabian Gulf click on this image

View Morning Glory Cloud Documentary which features some of the first Glider and Hang Glider pilots to "surf the Glory".

View short video samples of the Morning Glory Cloud and the Gulf of Carpentaria
